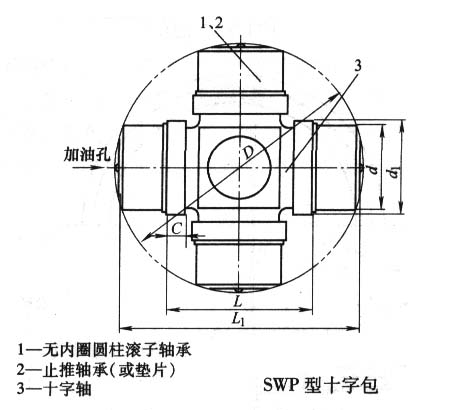

SWP万向联轴器用十字包的主要尺寸：mm
|
型号 |
回转直径
d |
L |
D |
L1 |
|
SWP-B160 |
160 |
98 |
52 |
156 |
|
SWP-B180 |
180 |
108 |
60 |
174 |
|
SWP-B200 |
200 |
118 |
66 |
194 |
|
SWP-B225 |
225 |
132 |
74 |
218 |
|
SWP-B250 |
250 |
140 |
83 |
244 |
|
SWP-B285 |
285 |
160 |
95 |
276 |
|
SWP-B315 |
315 |
176 |
110 |
306 |
|
SWP-B350 |
350 |
196 |
120 |
339 |
|
SWP-B390 |
390 |
216 |
130 |
380 |
|
SWP-B435 |
435 |
250 |
154 |
424 |
|
SWP-B480 |
480 |
276 |
170 |
470 |
|
SWP-B550 |
550 |
315 |
195 |
535 |
